Didi 38 Bulkheads assembly

Click on the picture to view it full screen size.

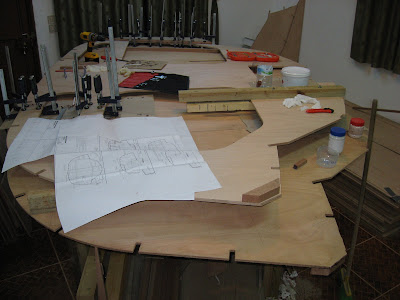

This is a kit we sent to a north african customer,he has invested in lots of clamps,the bulkheads with our stepped scarphs are being assembled one on top of the other to save space,when they are all glued up,they will be placed on the building stocks ready for the next stage of the boats build.Note the small meranti wood cleat on the top bulkhead and closest to the camera,all bulkheads will have similar cleats,they later support the Shearclamp that takes the top edge of the plywood hull skin,also the deck plys.
